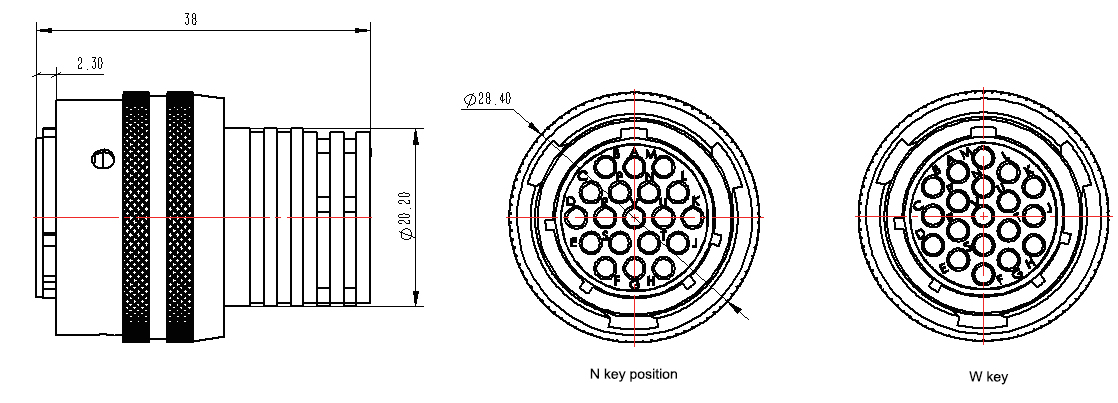

Name | Model | Key position | Locking method | |

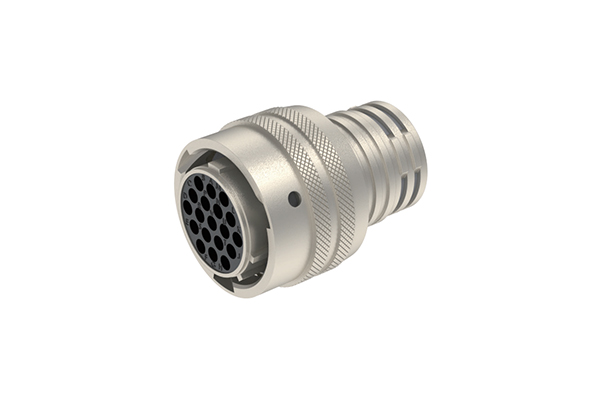

N-key plug | SZCNT56Y1419TS07 | 0° | Lagging | |
W key plug | SZCNT56Y1419TSW07 | 30° | Lagging | |
Technical Parameters | ||||
Number of contacts | 19 core | |||
Operating temperature | -40℃~125℃ | |||
Operating voltage | 250V/AC | |||
Medium withstand voltage | 1500V/AC | |||
Rated current | 5A | |||
Insulation resistance | ≥1000MΩ(25℃) | |||
Salt spray test | 5% sodium chloride, 500H | |||
Mechanical life | ≥500 times (connection and separation) | |||
