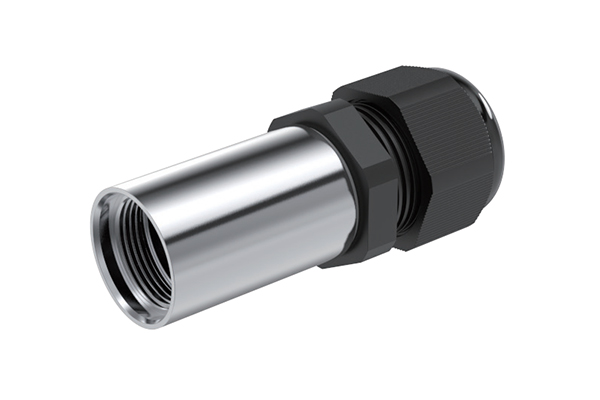

Shielded Cable Waterproof Tail Accessory With Strain Relief Nut (IP68)

Shielded Cable Waterproof Tail Accessory With Strain Relief Nut (IP68)

SZCNT56
The SZCNT56 series industrial waterproof connector is designed with reference to the US military standard MIL-C-26482 Series I (equivalent to the domestic GJB598A-1996 Series I). It is fully compatible with the same type of products produced by other companies. Its connection method adopts bayonet connection, and the contact termination form is crimping, welding or board connection. The product has the characteristics of quick connection, good shielding, high-level sealing, good salt spray resistance, and strong and reliable structure. It is suitable for electrical connection of electronic equipment such as new energy vehicles, communications, ships, engineering machinery, building automation and control, instrument measurement, energy and electricity, robots, machine tools, telecommunications data infrastructure, etc.

Reference Number

Shell No.

Clamping range: minimum to maximum diameter

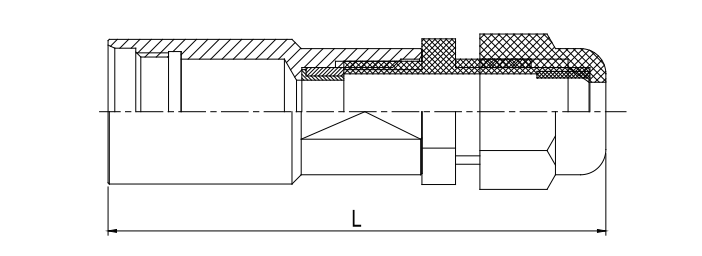

L

Thread A

SZCNT56-10JCSL

10

3.5/6.0

60.4

9/16-24 UNEF Class 2A

SZCNT56-12JCSL

12

3.5/6.0

60.4

11/16-24 UNEF Class 2A

SZCNT56-14JCSL

14

4.0/8.0

60.9

13/16-20 UNEF Class 2A

SZCNT56-16JCSL

16

5.0/10

62.9

15/16-20 UNEF Class 2A

SZCNT56-18JCSL

18

5.0/10

62.9

1"1/16-18 UNEF Class 2A

SZCNT56-20JCSL

20

6.0/12

68.4

1"3/16-18 UNEF Class 2A

SZCNT56-22JCSL

22

16.0/12

68.4

1"5/16-18 UNEF Class 2A

SZCNT56-24JCSL

24

12/15

70.4

1"7/16-18 UNEF Class 2A

※ The accessories at the end of the clamp are metric cable clamps. For the technical requirements of the thread, please refer to the last section of "Round Accessories" in this section.
×
