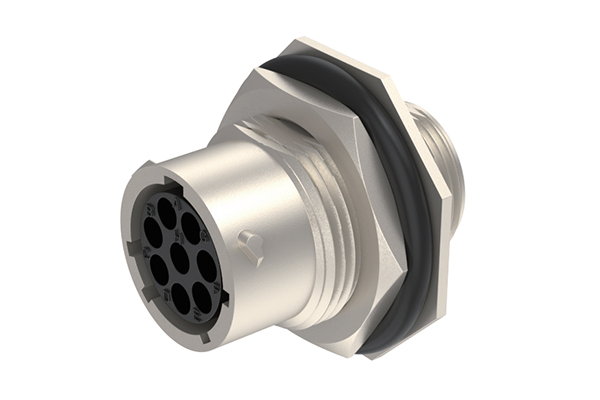

Panel Sockets For Socket Contacts Are Suitable For Panel Rear Mounting

SZCNT56-S
The SZCNT56 series industrial waterproof connector is designed with reference to the US military standard MIL-C-26482 Series I (equivalent to the domestic GJB598A-1996 Series I). It is fully compatible with the same type of products produced by other companies. Its connection method adopts bayonet connection, and the contact termination form is crimping, welding or board connection. The product has the characteristics of quick connection, good shielding, high-level sealing, good salt spray resistance, and strong and reliable structure. It is suitable for electrical connection of electronic equipment such as new energy vehicles, communications, ships, engineering machinery, building automation and control, instrument measurement, energy and electricity, robots, machine tools, telecommunications data infrastructure, etc.

Consult

Features
Technical Indicators

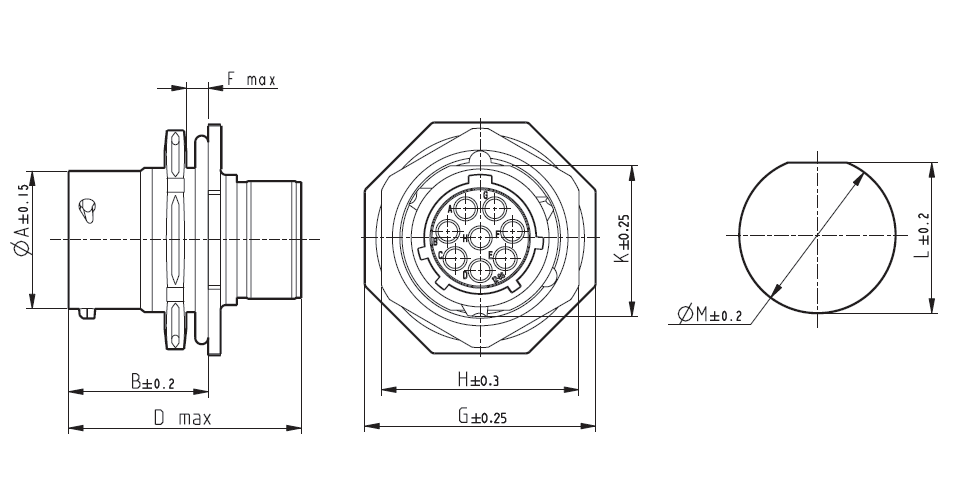

Overall Dimension


Part Number Shell No. ΦA±0.15 B±0.2 Dmax Fmax G±0.25 H±0.3 K±0.25 L±0.2 ΦM±0.2 SZCNT56Y10xxMZS 10 14.9 18.0 31.7 3.2 27.0 22.2 16.6 17.0 17.7 SZCNT56Y12xxMZS 12 19.0 31.8 27.0 20.8 21.2 22.5 SZCNT56Y14xxMZS 14 22.2 34.9 30.2 23.9 24.3 25.7 SZCNT56Y16xxMZS 16 25.3 38.1 33.3 27.1 27.5 28.7 SZCNT56Y18xxMZS 18 28.5 41.3 36.5 30.3 30.6 32.0 SZCNT56Y20xxMZS 20 31.7 22.7 33.3 6.4 46.1 39.7 33.4 33.8 35.2 SZCNT56Y22xxMZS 22 34.9 49.2 42.9 36.6 37.0 38.4 SZCNT56Y24xxMZS 24 38.0 23.6 52.4 46.0 39.8 40.1 41.5

Part Number	Shell No.	ΦA±0.15	B±0.2	Dmax	Fmax	G±0.25	H±0.3	K±0.25	L±0.2	ΦM±0.2
SZCNT56Y10xxMZS	10	14.9	18.0	31.7	3.2	27.0	22.2	16.6	17.0	17.7
SZCNT56Y12xxMZS	12	19.0				31.8	27.0	20.8	21.2	22.5
SZCNT56Y14xxMZS	14	22.2				34.9	30.2	23.9	24.3	25.7
SZCNT56Y16xxMZS	16	25.3				38.1	33.3	27.1	27.5	28.7
SZCNT56Y18xxMZS	18	28.5				41.3	36.5	30.3	30.6	32.0
SZCNT56Y20xxMZS	20	31.7	22.7	33.3	6.4	46.1	39.7	33.4	33.8	35.2
SZCNT56Y22xxMZS	22	34.9	22.7			49.2	42.9	36.6	37.0	38.4
SZCNT56Y24xxMZS	24	38.0	23.6			52.4	46.0	39.8	40.1	41.5
