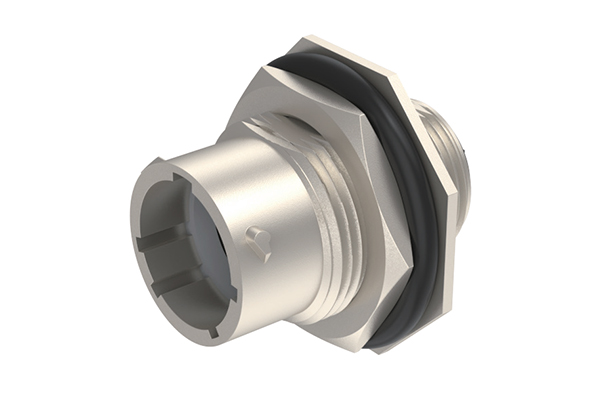

The Nut Clamping Socket For Pin Contacts Is Suitable For Panel Rear Installation

SZCNT56-P
The SZCNT56 series industrial waterproof connector is designed with reference to the US military standard MIL-C-26482 Series I (equivalent to the domestic GJB598A-1996 Series I). It is fully compatible with the same type of products produced by other companies. Its connection method adopts bayonet connection, and the contact termination form is crimping, welding or board connection. The product has the characteristics of quick connection, good shielding, high-level sealing, good salt spray resistance, and strong and reliable structure. It is suitable for electrical connection of electronic equipment such as new energy vehicles, communications, ships, engineering machinery, building automation and control, instrument measurement, energy and electricity, robots, machine tools, telecommunications data infrastructure, etc.

Consult

Features
Technical Indicators

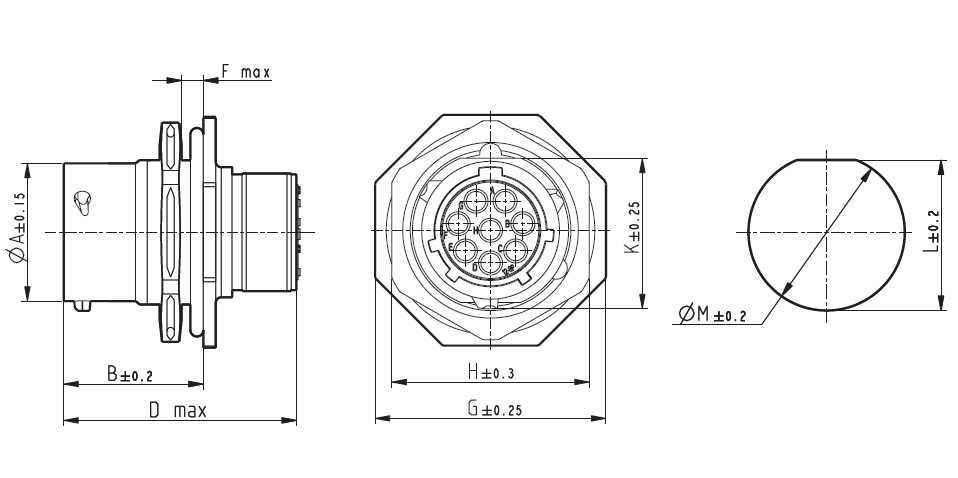

Overall Dimension


Part Number Shell No. ΦA±0.15 B±0.2 Dmax Fmax G±0.25 H±0.3 K±0.25 L±0.2 ΦM±0.2 SZCNT56Y10xxMZP 10 14.9 18.0 31.7 3.2 27.0 22.2 16.6 17.0 17.7 SZCNT56Y12xxMZP 12 19.0 31.8 27.0 20.8 21.2 22.5 SZCNT56Y14xxMZP 14 22.2 34.9 30.2 23.9 24.3 25.7 SZCNT56Y16xxMZP 16 25.3 38.1 33.3 27.1 27.5 28.7 SZCNT56Y18xxMZP 18 28.5 41.3 36.5 30.3 30.6 32.0 SZCNT56Y20xxMZP 20 31.7 22.7 33.3 6.4 46.1 39.7 33.4 33.8 35.2 SZCNT56Y22xxMZP 22 34.9 49.2 42.9 36.6 37.0 38.4 SZCNT56Y24xxMZP 24 38.0 23.6 52.4 46.0 39.8 40.1 41.5

Part Number	Shell No.	ΦA±0.15	B±0.2	Dmax	Fmax	G±0.25	H±0.3	K±0.25	L±0.2	ΦM±0.2
SZCNT56Y10xxMZP	10	14.9	18.0	31.7	3.2	27.0	22.2	16.6	17.0	17.7
SZCNT56Y12xxMZP	12	19.0				31.8	27.0	20.8	21.2	22.5
SZCNT56Y14xxMZP	14	22.2				34.9	30.2	23.9	24.3	25.7
SZCNT56Y16xxMZP	16	25.3				38.1	33.3	27.1	27.5	28.7
SZCNT56Y18xxMZP	18	28.5				41.3	36.5	30.3	30.6	32.0
SZCNT56Y20xxMZP	20	31.7	22.7	33.3	6.4	46.1	39.7	33.4	33.8	35.2
SZCNT56Y22xxMZP	22	34.9	22.7			49.2	42.9	36.6	37.0	38.4
SZCNT56Y24xxMZP	24	38.0	23.6			52.4	46.0	39.8	40.1	41.5
