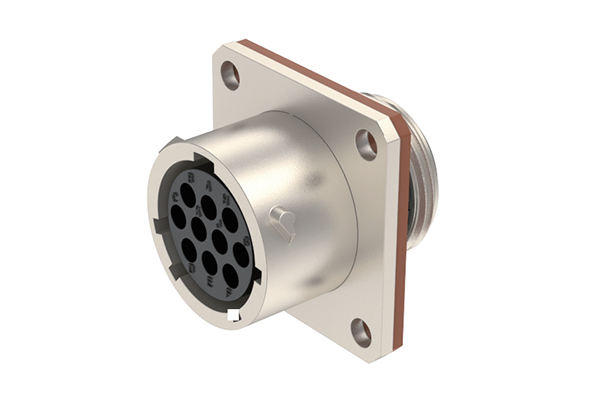

Panel Sockets For Female Contacts

SZCNT56-S
The SZCNT56 series industrial waterproof connector is designed with reference to the US military standard MIL-C-26482 Series I (equivalent to the domestic GJB598A-1996 Series I). It is fully compatible with the same type of products produced by other companies. Its connection method adopts bayonet connection, and the contact termination form is crimping, welding or board connection. The product has the characteristics of quick connection, good shielding, high-level sealing, good salt spray resistance, and strong and reliable structure. It is suitable for electrical connection of electronic equipment such as new energy vehicles, communications, ships, engineering machinery, building automation and control, instrument measurement, energy and electricity, robots, machine tools, telecommunications data infrastructure, etc.

Consult

Features
Technical Indicators

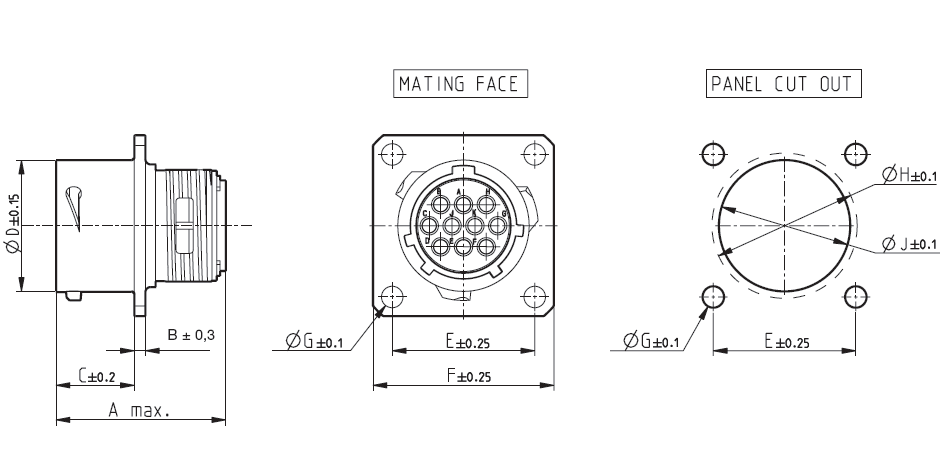

Overall Dimension


Part Number Shell No. Amax B±0.3 C±0.2 ΦD±0.15 E±0.25 F±0.25 ΦG±0.1 ΦH±0.1 ΦJ±0.1 SZCNT56Y10xxEZS 10 24.3 1.6 11.3 15.0 18.3 23.8 3.2 17.3 15.1 SZCNT56Y12xxEZS 12 19.0 20.6 26.2 21.8 18.2 SZCNT56Y14xxEZS 14 22.2 23.0 8.6 25.0 21.4 SZCNT56Y16xxEZS 16 25.3 24.6 31.0 28.1 24.6 SZCNT56Y18xxEZS 18 28.5 26.9 33.3 31.3 27.8 SZCNT56Y20xxEZS 20 25.9 2.4 14.5 31.7 29.4 36.5 34.5 30.9 SZCNT56Y22xxEZS 22 34.9 31.8 39.7 37.7 34.1 SZCNT56Y24xxEZS 24 15.3 38.0 34.9 42.9 3.9 40.9 37.3

Part Number	Shell No.	Amax	B±0.3	C±0.2	ΦD±0.15	E±0.25	F±0.25	ΦG±0.1	ΦH±0.1	ΦJ±0.1
SZCNT56Y10xxEZS	10	24.3	1.6	11.3	15.0	18.3	23.8	3.2	17.3	15.1
SZCNT56Y12xxEZS	12				19.0	20.6	26.2		21.8	18.2
SZCNT56Y14xxEZS	14				22.2	23.0	8.6		25.0	21.4
SZCNT56Y16xxEZS	16				25.3	24.6	31.0		28.1	24.6
SZCNT56Y18xxEZS	18				28.5	26.9	33.3		31.3	27.8
SZCNT56Y20xxEZS	20	25.9	2.4	14.5	31.7	29.4	36.5		34.5	30.9
SZCNT56Y22xxEZS	22			14.5	34.9	31.8	39.7		37.7	34.1
SZCNT56Y24xxEZS	24			15.3	38.0	34.9	42.9	3.9	40.9	37.3
