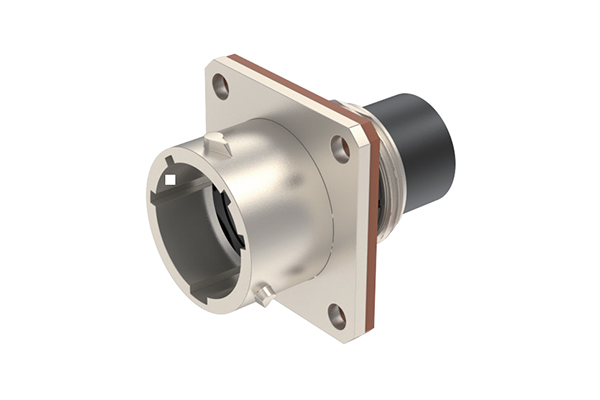

Panel Sockets For Pin Contacts

SZCNT56-P
The SZCNT56 series industrial waterproof connector is designed with reference to the US military standard MIL-C-26482 Series I (equivalent to the domestic GJB598A-1996 Series I). It is fully compatible with the same type of products produced by other companies. Its connection method adopts bayonet connection, and the contact termination form is crimping, welding or board connection. The product has the characteristics of quick connection, good shielding, high-level sealing, good salt spray resistance, and strong and reliable structure. It is suitable for electrical connection of electronic equipment such as new energy vehicles, communications, ships, engineering machinery, building automation and control, instrument measurement, energy and electricity, robots, machine tools, telecommunications data infrastructure, etc.

Consult

Features
Technical Indicators

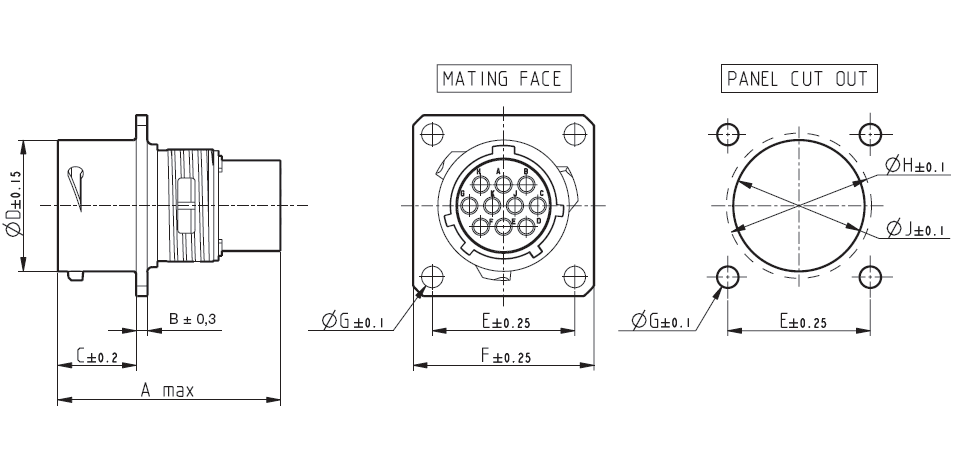

Overall Dimension


Part Number Shell No. Amax B±0.3 C±0.2 ΦD±0.15 E±0.25 F±0.25 ΦG±0.1 ΦH±0.1 ΦJ±0.1 SZCNT56Y10xxEZP 10 31.7 1.6 11.3 15.0 18.3 23.8 3.2 17.3 15.1 SZCNT56Y12xxEZP 12 19.0 20.6 26.2 21.8 18.2 SZCNT56Y14xxEZP 14 22.2 23.0 28.9 25.0 21.4 SZCNT56Y16xxEZP 16 25.3 24.6 31.0 28.1 24.6 SZCNT56Y18xxEZP 18 28.5 26.9 33.3 31.3 27.8 SZCNT56Y20xxEZP 20 33.3 2.4 14.5 31.7 29.4 36.5 34.5 30.9 SZCNT56Y22xxEZP 22 34.9 31.8 39.7 37.7 34.1 SZCNT56Y24xxEZP 24 15.3 38.0 34.9 42.9 3.9 40.9 37.3

Part Number	Shell No.	Amax	B±0.3	C±0.2	ΦD±0.15	E±0.25	F±0.25	ΦG±0.1	ΦH±0.1	ΦJ±0.1
SZCNT56Y10xxEZP	10	31.7	1.6	11.3	15.0	18.3	23.8	3.2	17.3	15.1
SZCNT56Y12xxEZP	12				19.0	20.6	26.2		21.8	18.2
SZCNT56Y14xxEZP	14				22.2	23.0	28.9		25.0	21.4
SZCNT56Y16xxEZP	16				25.3	24.6	31.0		28.1	24.6
SZCNT56Y18xxEZP	18				28.5	26.9	33.3		31.3	27.8
SZCNT56Y20xxEZP	20	33.3	2.4	14.5	31.7	29.4	36.5		34.5	30.9
SZCNT56Y22xxEZP	22			14.5	34.9	31.8	39.7		37.7	34.1
SZCNT56Y24xxEZP	24			15.3	38.0	34.9	42.9	3.9	40.9	37.3
