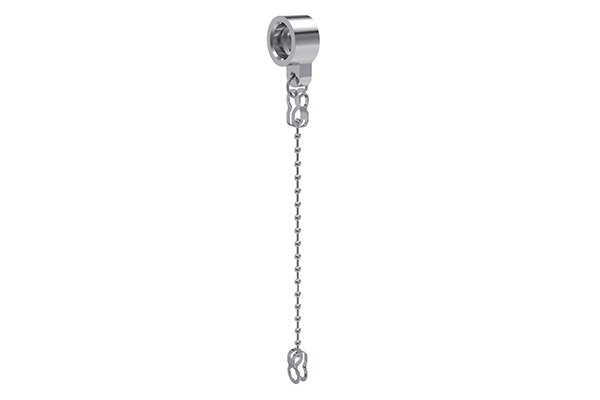

Environmentally Resistant Metal Dust Cover For Sockets

CNT0/OW-DCG
The shell of this series of products is completely consistent with the MIL-C-26482 standard (equivalent to the domestic GJB598A-1996 specification). Its connection method adopts bayonet connection, contact piece, and terminal form is crimping, welding or plate connection. The product has the characteristics of quick connection, high-level sealing, and good salt spray resistance. It is suitable for electrical connection of electronic equipment such as communications, ships, engineering machinery, building automation and control, energy and power, robots, LED industry, photovoltaic industry, etc.

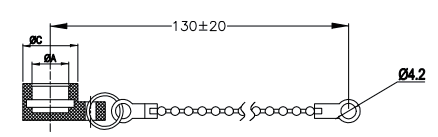

Part Number

Shell No.

ΦA

ΦC

CNT5710FCG-Z1

10

14.2

19.5

CNT5712FCG-Z1

12

18

23.5

CNT5714FCG-Z1

14

21.2

27

CNT5716FCG-Z1

16

24.3

30

CNT5718FCG-Z1

18

27.5

33

※If you want to use a dust cover without a chain, please remove G, for example: CNT5712DC-Z1
※If you want to clamp the dust cover with a nut, please contact our company

×
