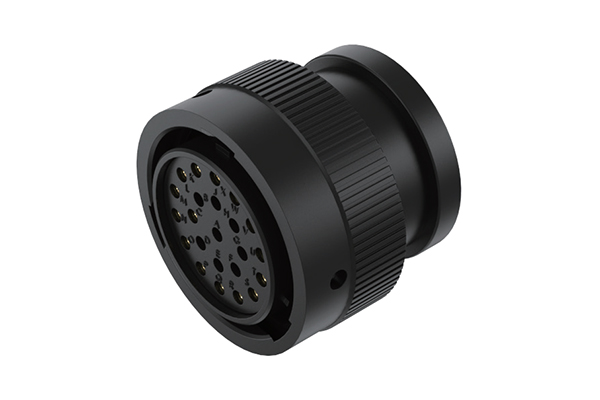

Customized 23-Pin Plastic Plug

SZCNT57Y2223TS04-S0
The shell of this series of products is completely consistent with the MIL-C-26482 standard (equivalent to the domestic GJB598A-1996 specification). Its connection method adopts bayonet connection, contact piece, and terminal form is crimping, welding or plate connection. The product has the characteristics of quick connection, high-level sealing, and good salt spray resistance. It is suitable for electrical connection of electronic equipment such as communications, ships, engineering machinery, building automation and control, energy and power, robots, LED industry, photovoltaic industry, etc.

Consult

Features
Technical Indicators

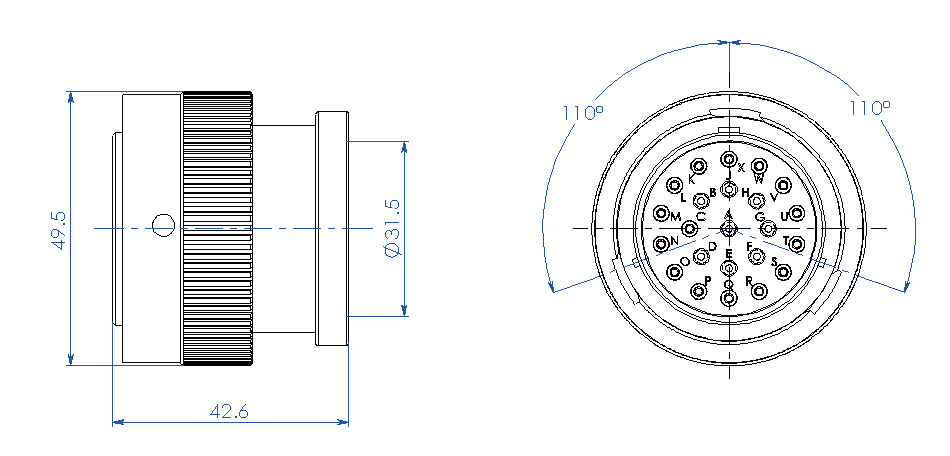

Overall Dimension


Technical Parameters
Operating temperature
-40℃~105℃
Relative humidity
90%～95%(40±2)
Working air pressure
4.39KPa~101.33KPa
vibration
10～2000Hz,196m/s2,momentary interruption≤1μs
Shock
980m/s2, instantaneous interruption ≤1μs
Operating voltage
600V
Withstand voltage
1500V
Working current
12A
Contact resistance
≤3mΩ
Insulation resistance
≥5000MΩ
Mechanical life
500 times
Waterproof grade
IP67
Salt spray resistant
48 hours
※Matching punching hole, (order separately)

Technical Parameters
Operating temperature	-40℃~105℃
Relative humidity	90%～95%(40±2)
Working air pressure	4.39KPa~101.33KPa
vibration	10～2000Hz,196m/s2,momentary interruption≤1μs
Shock	980m/s2, instantaneous interruption ≤1μs
Operating voltage	600V
Withstand voltage	1500V
Working current	12A
Contact resistance	≤3mΩ
Insulation resistance	≥5000MΩ
Mechanical life	500 times
Waterproof grade	IP67
Salt spray resistant	48 hours
※Matching punching hole, (order separately)
