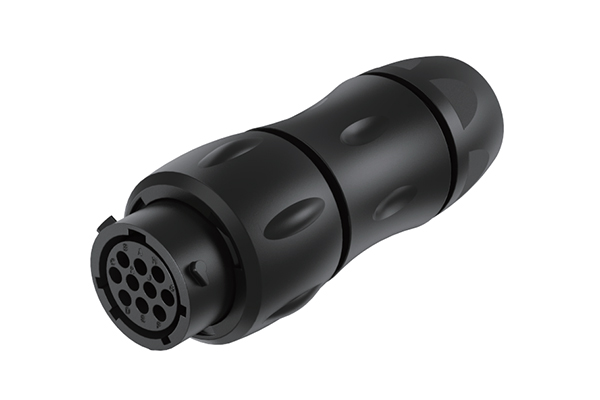

Cable Floating Socket For Contacts

Cable Floating Socket For Contacts

SZCNT57-P/S
The shell of this series of products is completely consistent with the MIL-C-26482 standard (equivalent to the domestic GJB598A-1996 specification). Its connection method adopts bayonet connection, contact piece, and terminal form is crimping, welding or plate connection. The product has the characteristics of quick connection, high-level sealing, and good salt spray resistance. It is suitable for electrical connection of electronic equipment such as communications, ships, engineering machinery, building automation and control, energy and power, robots, LED industry, photovoltaic industry, etc.

(Needle installation)

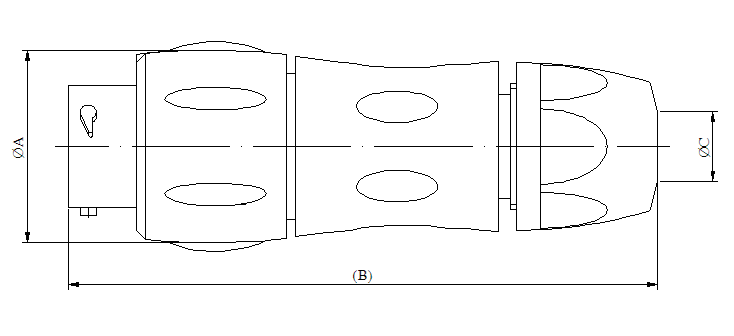

Part Number (Mounting Hole)

Shell No.

 ØA

(B)

 ØB(Cable diameter range)

SZCNT57Y10xxFZP01

SZCNT57Y10xxFZS01

10

26

73

1.5 to 5.0 5.0 to 8.0 (standard)

SZCNT57Y12xxFZP01

SZCNT57Y12xxFZS01

12

29.5

78

3.0 to 5.0 5.0 to 12.0 (standard)

SZCNT57Y14xxFZP01

SZCNT57Y14xxFZS01

14

34.5

84.5

5.0 to 9.0 9.0 to 14.0 (standard)

SZCNT57Y16xxFZP01

SZCNT57Y16xxFZS01

18





7.0 to 9.0 9.0 to 18.0 (standard)

※These part numbers are applicable to both IP67 and IP68 waterproof
×
