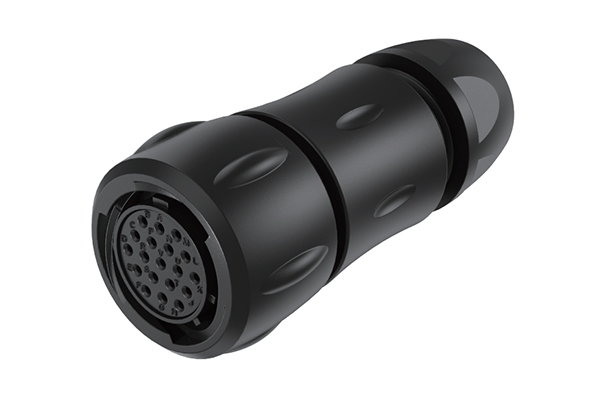

Cable Plug For Contacts

Cable Plug For Contacts

SZCNT57 -P/S
The shell of this series of products is completely consistent with the MIL-C-26482 standard (equivalent to the domestic GJB598A-1996 specification). Its connection method adopts bayonet connection, contact piece, and terminal form is crimping, welding or plate connection. The product has the characteristics of quick connection, high-level sealing, and good salt spray resistance. It is suitable for electrical connection of electronic equipment such as communications, ships, engineering machinery, building automation and control, energy and power, robots, LED industry, photovoltaic industry, etc.

Part Number (needle)

Part Number (Mounting Hole)

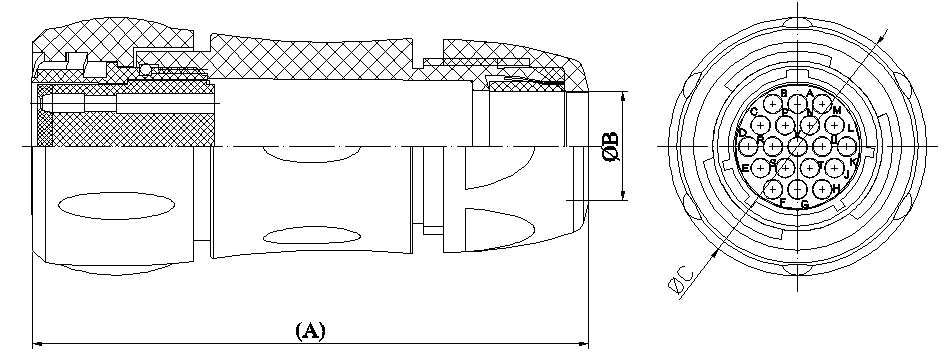

Shell No.

(A)

  ØB(Cable diameter range)

ØC

SZCNT57Y10xxTP

SZCNT57Y10xxTS

10

63

1.5至5.0 5.0至8.0(standard)

26

SZCNT57Y12xxTP

SZCNT57Y12xxTS

12

68

3.0至5.0 5.0至12.0(standard)

29.5

SZCNT57Y14xxTP

SZCNT57Y14xxTS

14

74.5

5.0至9.0 9.0至14.0(standard)

34.5

SZCNT57Y16xxTP

SZCNT57Y16xxTS

16



7.0至9.0 9.0至18.0(standard)


※These part numbers are applicable to both IP67 and IP68 waterproof categories
×
