Panel Socket

SZCNT57 -P/S

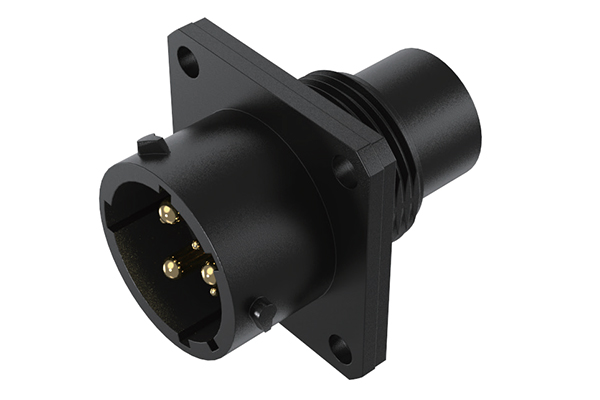

The shell of this series of products is completely consistent with the MIL-C-26482 standard (equivalent to the domestic GJB598A-1996 specification). Its connection method adopts bayonet connection, contact piece, and terminal form is crimping, welding or plate connection. The product has the characteristics of quick connection, high-level sealing, and good salt spray resistance. It is suitable for electrical connection of electronic equipment such as communications, ships, engineering machinery, building automation and control, energy and power, robots, LED industry, photovoltaic industry, etc.

Consult

Features
Technical Indicators

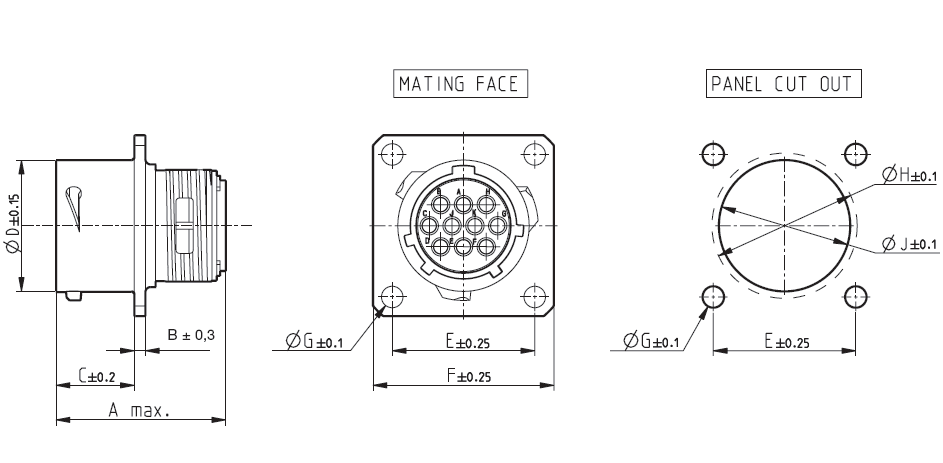

Overall Dimension


Part Number (needle) Part Number (Mounting Hole) Shell No. A maximum B ±0.3 C ±0.2 ΦD ±0.15 E ±0.25 F ±0.25 ΦG ±0.1 ΦH ±0.1 ΦJ ±0.1 SZCNT57Y10xxMZP SZCNT57Y10xxMZS 10 24.3 (hole) 32.5 (Needle) 1.6 11.3 15.0 18.3 23.8 3.2 17.3 15.1 SZCNT57Y12xxMZP SZCNT57Y12xxMZS 12 19.0 20.6 26.2 21.8 18.2 SZCNT57Y14xxMZP SZCNT57Y14xxMZS 14 22.2 23.0 8.6 25.0 21.4 SZCNT57Y16xxMZP SZCNT57Y16xxMZS 16 28.5 26.9 33.3 31.3 27.8 ※These part numbers are applicable to products with salt spray resistance of 48 hours and 96 hours ※The sealing ring used on the square plate must be ordered separately to ensure the seal between the equipment.

Part Number (needle)	Part Number (Mounting Hole)	Shell No.	A maximum	B ±0.3	C ±0.2	ΦD ±0.15	E ±0.25	F ±0.25	ΦG ±0.1	ΦH ±0.1	ΦJ ±0.1
SZCNT57Y10xxMZP	SZCNT57Y10xxMZS	10	24.3 (hole) 32.5 (Needle)	1.6	11.3	15.0	18.3	23.8	3.2	17.3	15.1
SZCNT57Y12xxMZP	SZCNT57Y12xxMZS	12				19.0	20.6	26.2		21.8	18.2
SZCNT57Y14xxMZP	SZCNT57Y14xxMZS	14				22.2	23.0	8.6		25.0	21.4
SZCNT57Y16xxMZP	SZCNT57Y16xxMZS	16				28.5	26.9	33.3		31.3	27.8
