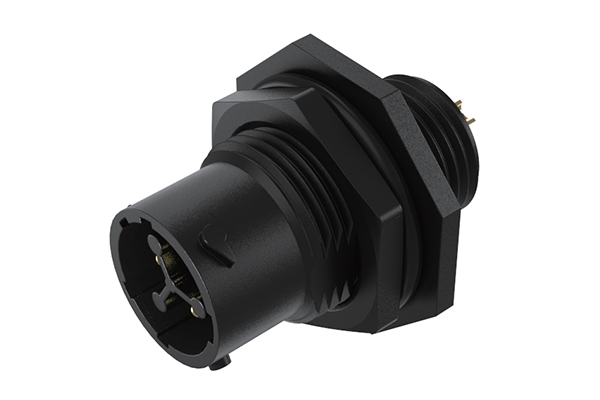

Nut Sealed Socket

CNT57- P/S
The shell of this series of products is completely consistent with the MIL-C-26482 standard (equivalent to the domestic GJB598A-1996 specification). Its connection method adopts bayonet connection, contact piece, and terminal form is crimping, welding or plate connection. The product has the characteristics of quick connection, high-level sealing, and good salt spray resistance. It is suitable for electrical connection of electronic equipment such as communications, ships, engineering machinery, building automation and control, energy and power, robots, LED industry, photovoltaic industry, etc.

Consult

Features
Technical Indicators

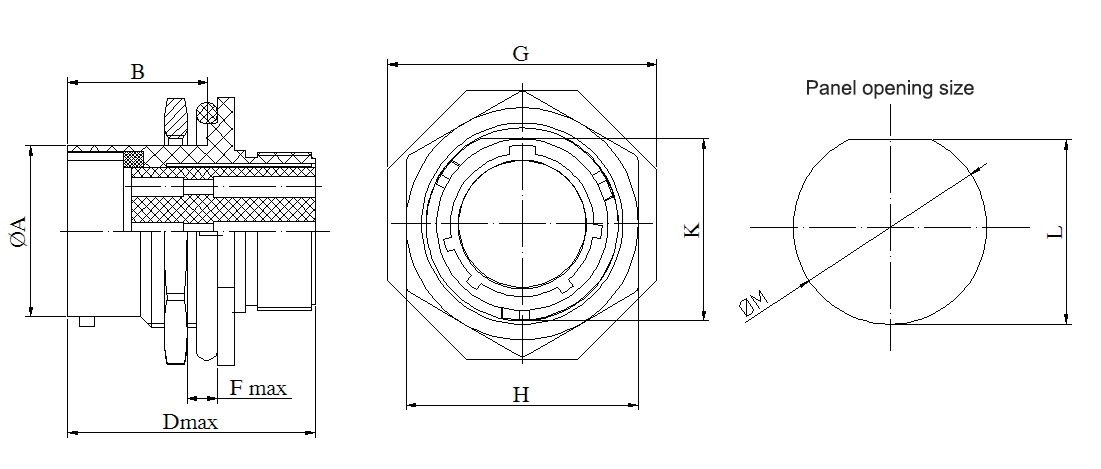

Overall Dimension


Part Number (needle)
Part Number (Mounting Hole)
Shell No.
A
B
D
F
G
H
K
L
M
SZCNT57Y10xxMZP
SZCNT57Y10xxMZS
10
15
18
31.5
3
27
22.3
16.5
17.7
16.6
SZCNT57Y12xxMZP
SZCNT57Y12xxMZS
12
19
31.8
26.2
20.6
21.8
18.2
SZCNT57Y14xxMZP
SZCNT57Y14xxMZS
14

23.0
8.6

25.0
21.4
SZCNT57Y16xxMZP
SZCNT57Y16xxMZS
16

24.6
31.0

28.1
24.6

※These part numbers are applicable to products with salt spray resistance of 48 hours and 96 hours

Part Number (needle)	Part Number (Mounting Hole)	Shell No.	A	B	D	F	G	H	K	L	M
SZCNT57Y10xxMZP	SZCNT57Y10xxMZS	10	15	18	31.5	3	27	22.3	16.5	17.7	16.6
SZCNT57Y12xxMZP	SZCNT57Y12xxMZS	12	19				31.8	26.2	20.6	21.8	18.2
SZCNT57Y14xxMZP	SZCNT57Y14xxMZS	14					23.0	8.6		25.0	21.4
SZCNT57Y16xxMZP	SZCNT57Y16xxMZS	16					24.6	31.0		28.1	24.6
