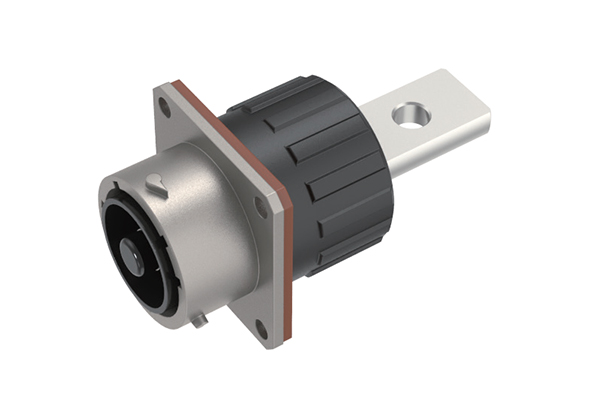

Pressed Flange Socket

SZCNT58-QC2

The SZCNT58-QC2 series high-voltage connectors are designed with reference to the U.S. military standard MIL-C-26482 series. Its connection method uses a bayonet connection, which is suitable for various high-current connection occasions, such as electric vehicle charging, power distribution systems, industrial heavy-duty connection systems, etc. The series of high-voltage connectors adopts torsion spring connection technology and provides standard products with complete specifications to ensure users a fast and safe connection system. Professional design and customization services can be provided according to customer needs.

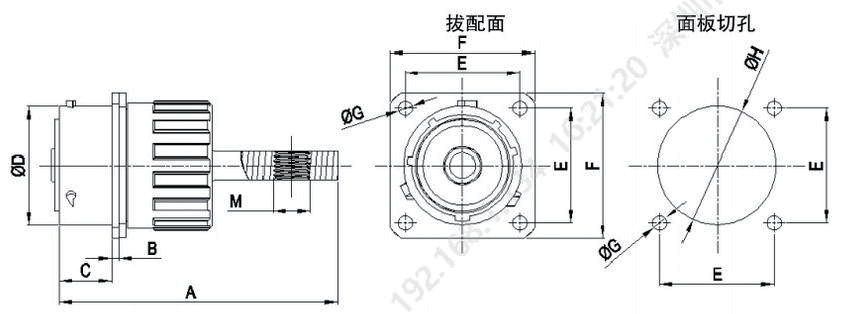

Part Number Shell No. A maximum B ±0.2 C ±0.2 Middle D ±0.15 E ±0.25 F ±0.25 Medium G ±0.1 Medium H ±0.1 M CNT58-QC2-H1201EZP 12 55 1.6 11.3 19.0 20.6 26.2 3.2 21.8 M6*1 CNT58-QC2-H1401EZP 14 56 22 23.0 28.6 25 M6*1 CNT58-QC2-H1601EZP 16 61 25 24.6 31.0 28 M8*1 CNT58-QC2-H2001EZP 20 70 2.4 14.5 31.7 29.4 36.5 35 M8*1
