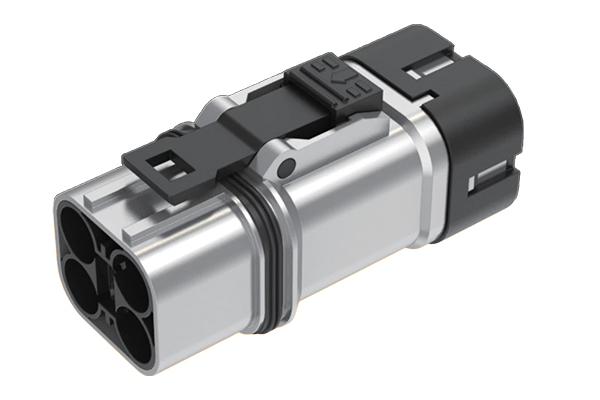

High Voltage Waterproof Connector

SZCNT58-QC2
The SZCNT58-QC2 series high-voltage connectors are designed with reference to the U.S. military standard MIL-C-26482 series. Its connection method uses a bayonet connection, which is suitable for various high-current connection occasions, such as electric vehicle charging, power distribution systems, industrial heavy-duty connection systems, etc. The series of high-voltage connectors adopts torsion spring connection technology and provides standard products with complete specifications to ensure users a fast and safe connection system. Professional design and customization services can be provided according to customer needs.

Consult

Features
Technical Indicators
Overall Dimension


Technical indicators Working temperature -40 ～ +125℃ Relative humidity 90% ~95%(40±2℃) Working air pressure 4.39KPa~101.33KPa Salt spray performance 48-120h Waterproof level IP67 Working voltage 1000V Vibration 10 ～ 2000Hz, 196m/s2, instantaneous interruption ≤ 1μs Shock 980m/s2, instantaneous interruption ≤ 1μs Mechanical life 500 times Insulation resistance ≥ 5000MΩ Withstand voltage 5000V

Technical indicators
Working temperature	-40 ～ +125℃
Relative humidity	90% ~95%(40±2℃)
Working air pressure	4.39KPa~101.33KPa
Salt spray performance	48-120h
Waterproof level	IP67
Working voltage	1000V
Vibration	10 ～ 2000Hz, 196m/s2, instantaneous interruption ≤ 1μs
Shock	980m/s2, instantaneous interruption ≤ 1μs
Mechanical life	500 times
Insulation resistance	≥ 5000MΩ
Withstand voltage	5000V
