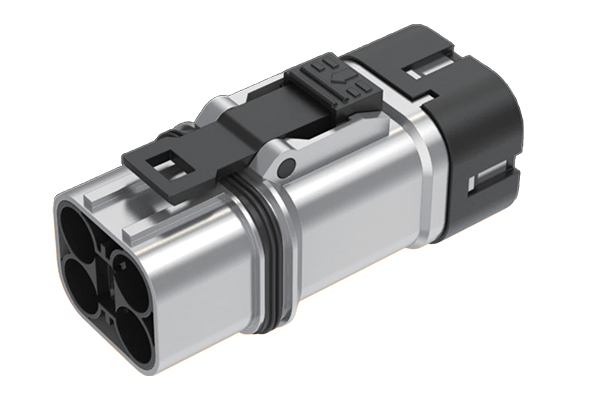

High Voltage Waterproof Connector

SZCNT58-QC1
The SZCNT58-QC1 series has a metal shell with good shielding effect, can achieve 360-degree shielding, and is small in size, especially suitable for occasions with narrow space. Its connection method adopts push-pull connection and secondary locking method, which is easy to operate and reliable. The product has the characteristics of quick connection, high-level sealing, good salt spray resistance, etc.

Consult

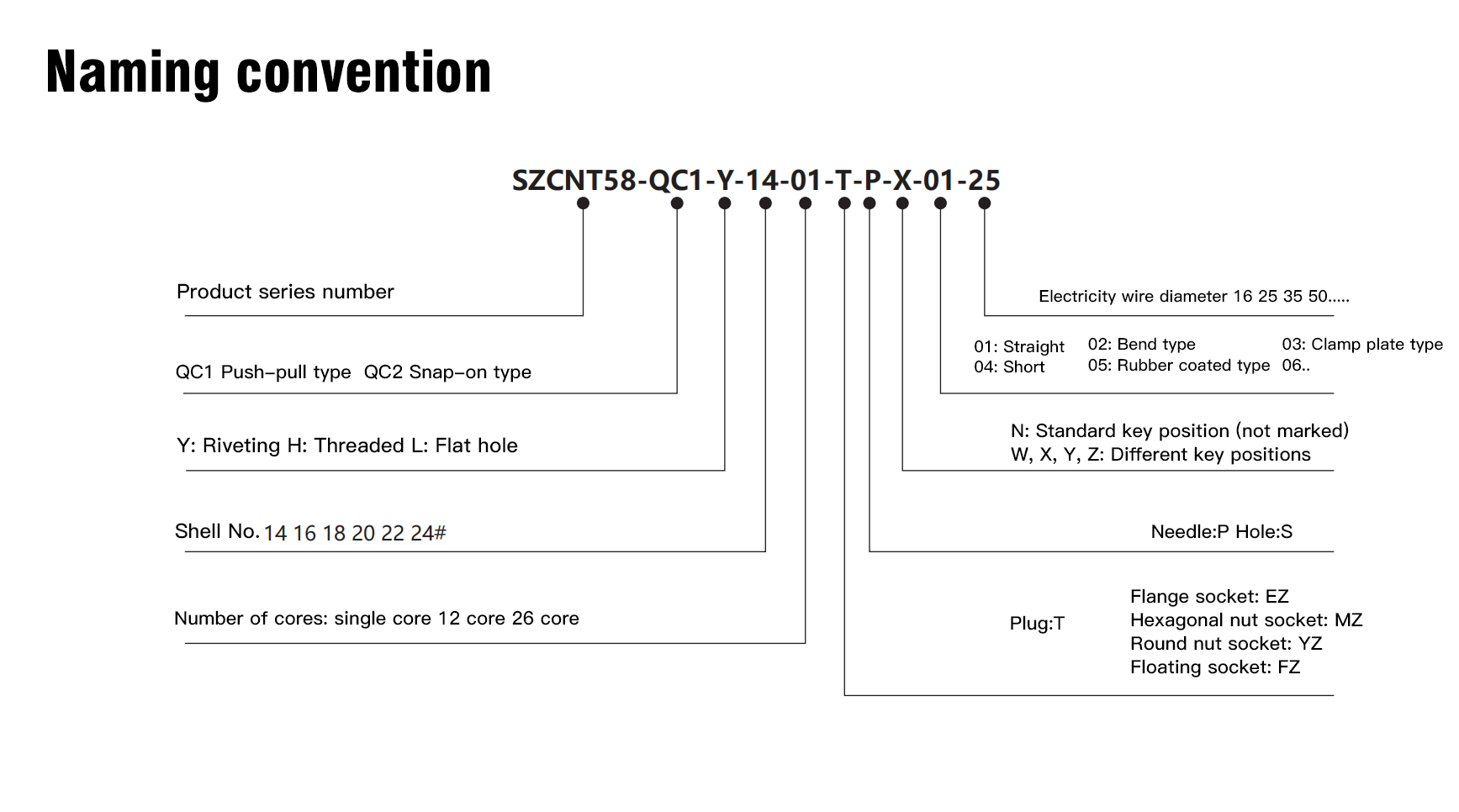

Features
Technical Indicators
Overall Dimension


Technical indicators Working temperature -40 ～ +125℃ Relative humidity 90% ~95%(40±2℃) Working air pressure 4.39KPa~101.33KPa Salt spray performance 48-120h Waterproof level IP67 Working voltage 1000V Vibration 10 ～ 2000Hz, 196m/s2, instantaneous interruption ≤ 1μs Shock 980m/s2, instantaneous interruption ≤ 1μs Mechanical life 500 times Insulation resistance ≥ 5000MΩ Withstand voltage 1500-3000V Working current and contact resistance Contact mating diameter (mm) Contact resistance (mΩ) Working current (A), temperature rise less than 45 degrees Applicable cable diameter (mm²) 6 ≤ 0.3 120A 25,35 12 ≤ 0.1 250A 50,70

Technical indicators
Working temperature	-40 ～ +125℃
Relative humidity	90% ~95%(40±2℃)
Working air pressure	4.39KPa~101.33KPa
Salt spray performance	48-120h
Waterproof level	IP67
Working voltage	1000V
Vibration	10 ～ 2000Hz, 196m/s2, instantaneous interruption ≤ 1μs
Shock	980m/s2, instantaneous interruption ≤ 1μs
Mechanical life	500 times
Insulation resistance	≥ 5000MΩ
Withstand voltage	1500-3000V

Working current and contact resistance
Contact mating diameter (mm)	Contact resistance (mΩ)	Working current (A), temperature rise less than 45 degrees	Applicable cable diameter (mm²)
6	≤ 0.3	120A	25,35
12	≤ 0.1	250A	50,70
