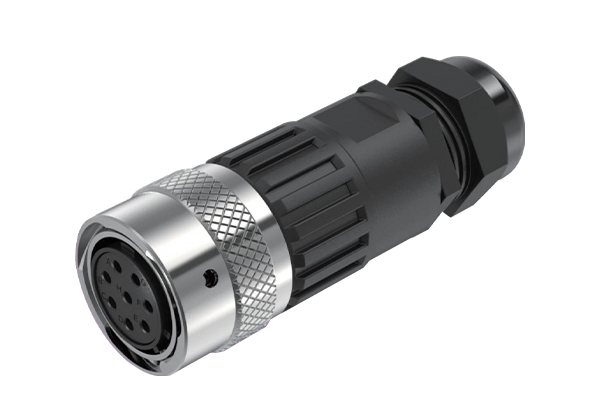

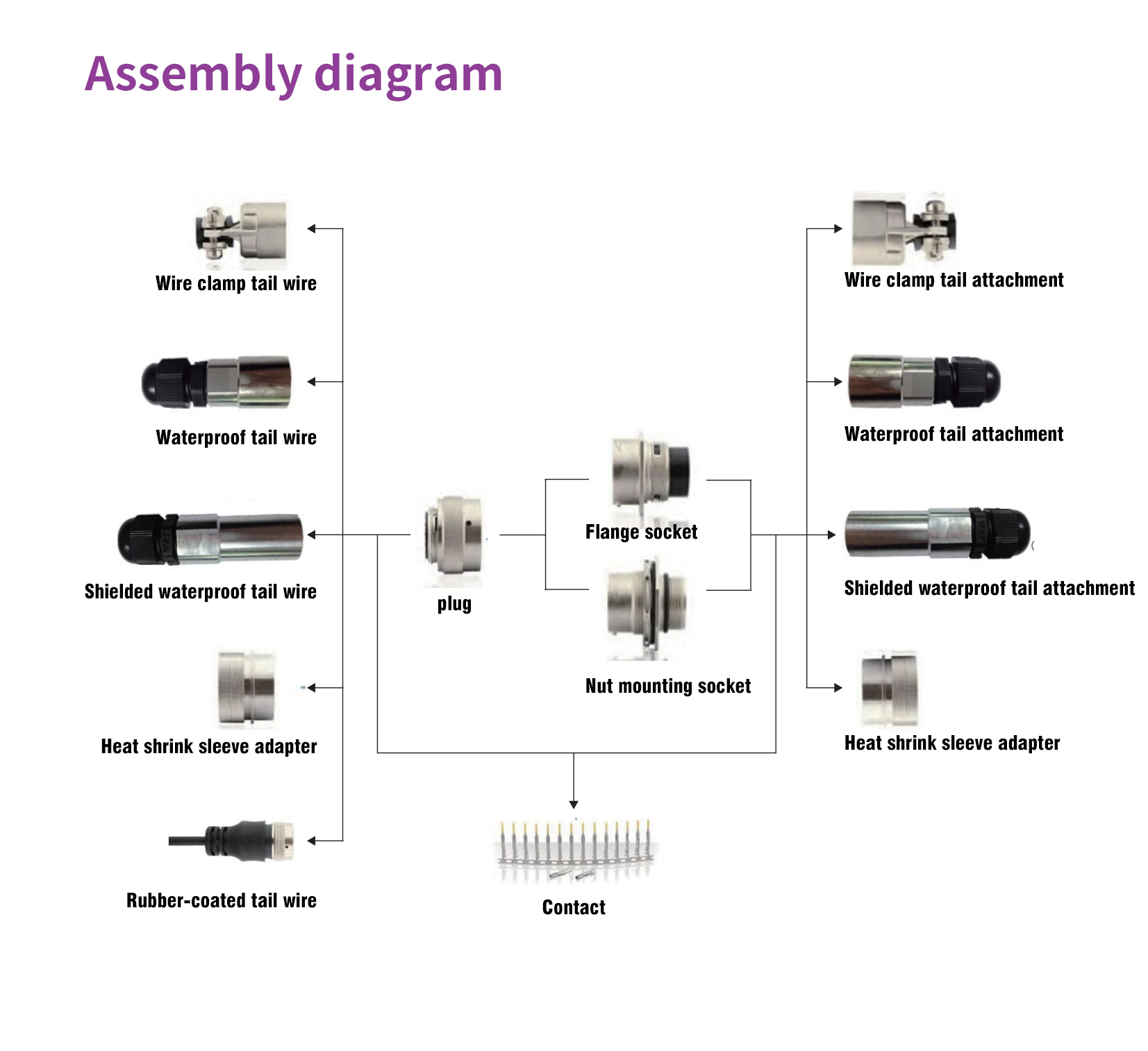

Technical indicators | |
Operating temperature | -40~+105°C |
Relative humidity | 90% ~95%(40±2℃) |
Operating air pressure | 4.39KPa~101.33KPa |
Salt spray performance | 48h |
Waterproof grade | IP67, up to dynamic IP68 |
Vibration | 10 ~ 2000Hz, 196m/s2, momentary interruption ≤ 1μs |
Shock | 980m/s2, momentary interruption ≤ 1μs |
Mechanical life | 500 times |
Insulation resistance | ||
Normal (MΩ) | High temperature (MΩ) | Moisture (MΩ) |
5000 | 500 | 100 |
Working current and contact resistance | |||
Contact code | Contact mating diameter (mm) | Contact resistance (mΩ) | Working current (A) |
22D# | 0.76 | ≤ 12.5 | 3 |
20# (machined) | φ1 | ≤5 | 7.5 |
20# (punched) | φ1 | ≤15 | 5 |
16# | φ1.6 | ≤3 | 13 |
| Φ2.0 | ≤2 | 20 |
12# | Φ2.38 | ≤2 | 30 |
8# | Φ3.6 | ≤1 | 50 |
| Φ4.0 | ≤1 | 75 |
| Φ6.0 | ≤1 | 100 |
Working voltage and withstand voltage | ||
High | Operating Voltage (V) | Test withstand voltage(V) |
Sea level | 600 | 1500 |
21336m | 300 | 375 |
