SZCNT01-H-48 Rectangular Signal Connector

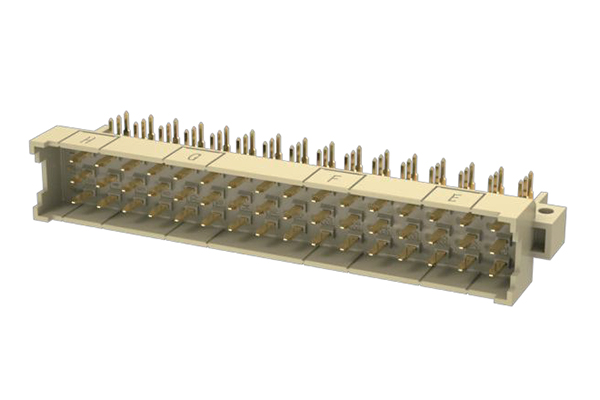

P end: SZCNT01-H-48PB(W)

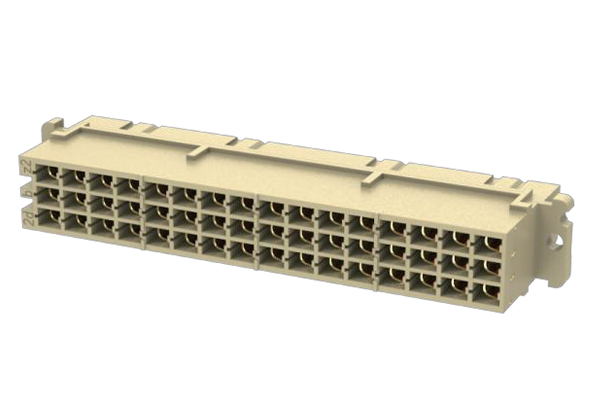

S end: SZCNT01-H-48SY

Main technical parameters

Operating temperature

-25℃~+120℃

Relative humidity

  60%(40℃)

Insulation resistance

≥3000MΩ(normal)

Mechanical life

  1000 times

Shell material

PC UL94-V0

Contact member

Specification


Signal contact
0.6 Policy


Quantity

48

Rated current

3A

Contact resistance

20mΩ

Withstand voltage value

1000VDC/The center distance is 5.08mm

Surface treatment

Gold plating on contact surface,tin plating on other surface

Terminating form

Plate joint,crimp joint

Materials                 Insert pin,jack

Copper

×
