Main technical parameters | ||||
Operating temperature | -55℃~+125℃ | Relative humidity | 98%(40℃) | |
Insulation resistance | ≥3000MΩ(normal) | Mechanical life | 1000 times | |
Shell material | PET+30%GF UL94-V0 | |||
Contact member | Specification | Power contact | Signal contact | |
Quantity | 12 | 24 | ||
Rated current | 55A | 3A | ||
Contact resistance | 2mΩ | 20mΩ | ||

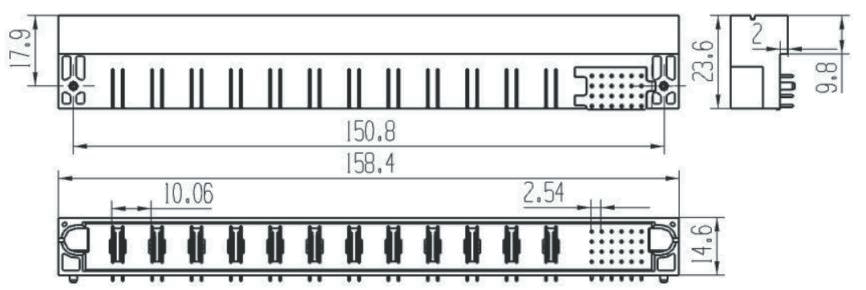

Withstand voltage value | 2500VDC(center distance 10.06mm) | 1000VDC(center distance 2.54mm) | ||
Surface treatment | The contact surface is gold-plated,the rest is tinned | |||
Terminating form | Plate joint |
| ||
Materials | Insert pin,jack | High-conductivity copper | ||
