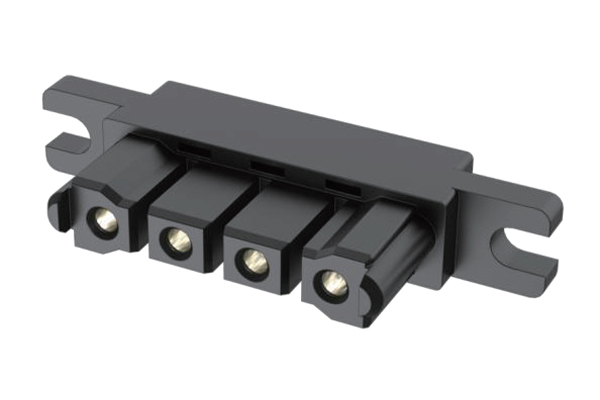

SZCNT01-E-4HB Rectangular High Current Connector

Main technical parameters

Operatng temperature

Insulation resistance

Shell material






Contact member

-55℃~+125℃

Relative humidity

Mechanical life

98%(40℃)

≥3000MΩ
≥3000MΩ(normal)

1000 times

PET+30%GF UL94-V0

Specification

Power contact
8#(Ø3.6mm)

Quantity

4

Rated current

75A

Contact resistance

0.7mΩ

Withstand voltage value

1500V

Surface treatment

Silver plating on nickel base

Terminating form

Crimp,PCB connection

Materials

Insert pin,jack
Crown spring

Orichalcum
Beryllium copper
