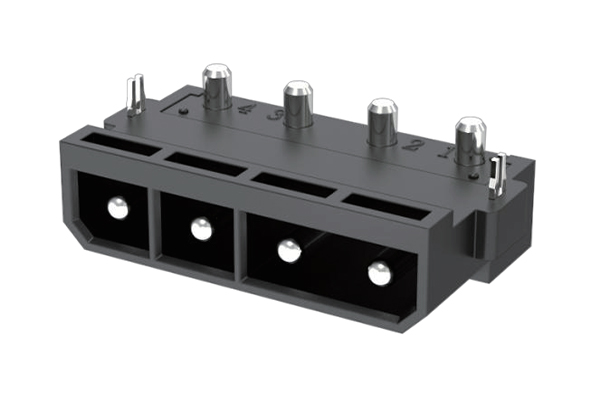

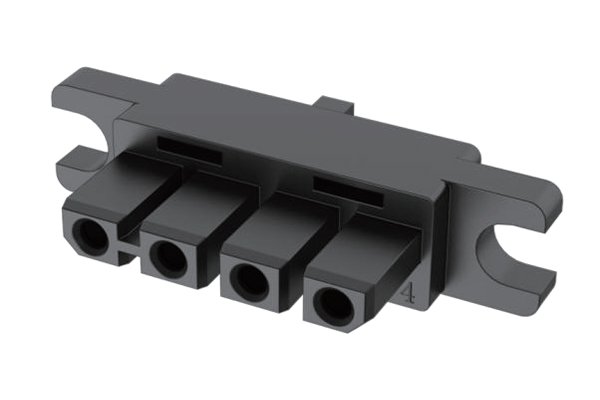

SZCNT01-E-4G Rectangular High Current Connector

Main technical parameters

Operating temperature

Insulation resistance


Shell material






Contact member

 -55℃~+125℃

Relative humidity

Mechanical life

 98%(40℃)

≥3000MΩ
≥3000MΩ(normal)

  1000 times

 PET+30%GF UL94-V0

 Specification

Power contact
Ø3mm/Diameter Ø3mm

Quantity

4

              Rated current

45A

   Contact resistance

0.6mΩ

    Withstand voltage value

1500V

Surface treatment

Silver plating on nickel base

    Terminating form

Crimp,plate joint
