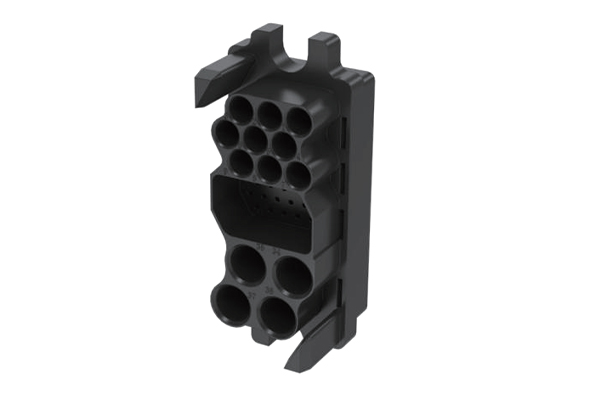

Main technical parameters | |||||
Operating tempeiature | -55℃~+125℃ | Relative humidity | 98%(40℃) | ||
Insulation resistance | ≥3000MΩ(normal) | Mechanical life | 1000 times | ||
Shell material | PET+30%GF UL94-V0 | ||||
Contact member | Specification | Power contact 8# | 12# | Signal contact 20# | |
Quantity | 4 | 9 | 24 | ||
Rated current | 75A | 35A | 5A | ||
Contact resistance | 0.7mΩ | 1.6mΩ | 6.7mΩ | ||
Withstand voltagevalue | 1500V | 1000V | |||
Surface treatment | Silver plating on nickel base | Nickel plating | |||
Terminating form | Welding,crimping,plate bonding | ||||
Materials | Insert pin,jack | Orichalcum | |||
Crown spring | Beryllium copper | ||||
