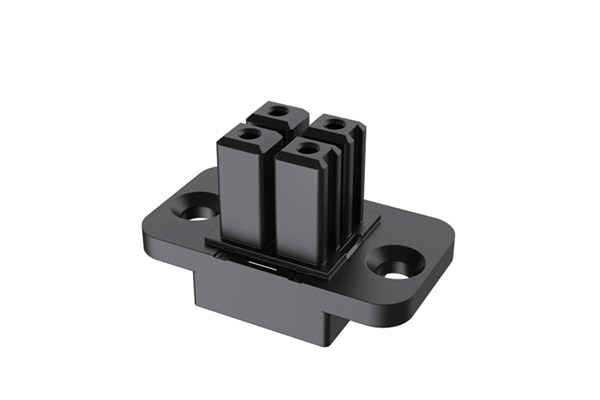

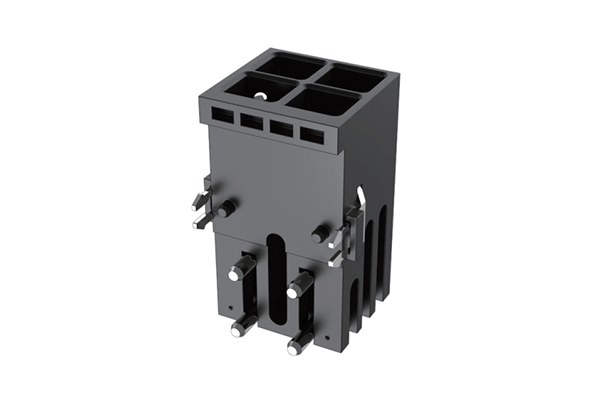

SZCNT01-E-04Y Power Connector

Main technical parameters

Operating temperature

Insulation resistance
Shell material






Contact member

-55℃~+125℃

Relative humidity


Mechanical life

 98%(40℃)

≥3000MΩ(normal)

 1000 times

 PET+30%GF     UL94-V0

 specification

Powercontact
12#

quantity                                                      4

Rated current

40A

Contact resistance

1.6mΩ

Withstand voltage value

1500V

Surface treatment

Silver plating on nickel base

Terminating form

Welding,crimping,plate bonding

 Materials

Insert pin,jack

Crown spring

Orichalcum

Beryllium copper
