Main technical parameters | ||||
Operating temperature | -55℃~+125℃ | Relative humidity | 98%(40℃) | |
Insulation resistance | ≥3000MΩ(normal) | Mechanicallife | 1000 times | |
Shell material | PET+30%GF UL94-V0 | |||
Contact member | Sspecification | Power contact | Signal contact | |

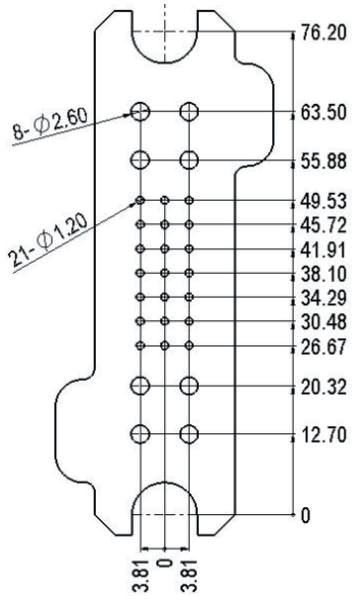

Quantity | 8 | 21 | ||
Rated current | 35A | 5A | ||
Contact resistance | 1.6mΩ | 6.7mΩ | ||
Withstand voltage value | 1500V | 1000V | ||
Surface treatment | Silver plating on nickel base | Nickel plating | ||
Terminating form | Welding,crimping,plate bonding | |||
Materials | Insert pin,jack | Orichalcum | ||
Crown spring | Berylium copper | |||
