SZCNT01-E-25B Power Connector

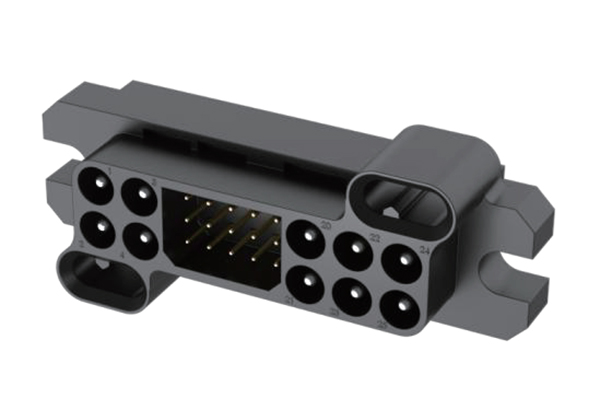

P end: SZCNT01-E-25BP

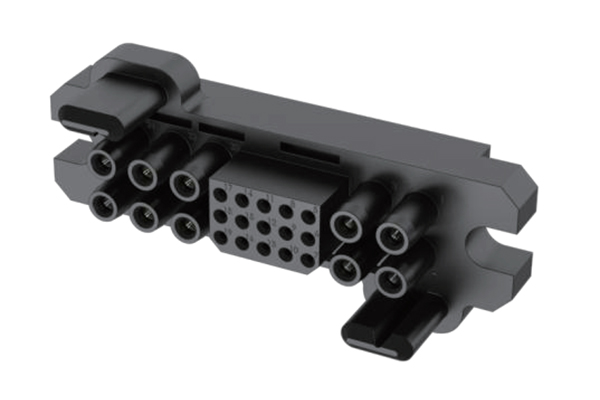

S end: SZCNT01-E-25BS

Main technical parameters

Operatng temperature

-55℃~+125℃

Relative humidity

98%(40℃)

Insulation resistance

≥3000MΩ(normal)

Mechanical life

1000 times

Shell material

     PET+30%GF     UL94-V0


Contact member

Specification

Power contact
12#

Signal contact
20#

Quantity

10

15

Rated current

35A

5A

Contact resistance

1.6mΩ

6.7mΩ

Withstand voltage value

1500V

1000V

Surface treatment

Silver plating on nickel base

Nickel plating

Terminating form

Welding,crimping,plate bonding

Materials

Insertpin,jack
Crown spring

Orichalcum
Beryllium copper

×
