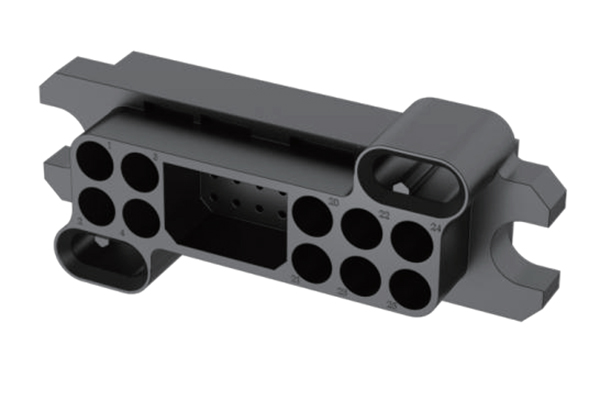

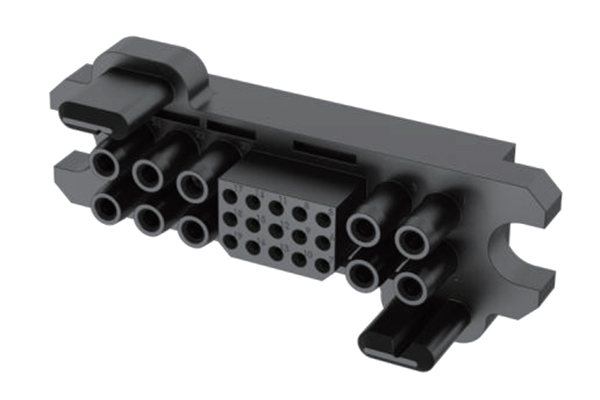

SZCNT01-E-25A Power Connector

Main technical parameters

Operating temperature

Insulation resistance

Shell material






Contact member

-55℃~+125℃

Relative humidity

Mechanical life

98%(40℃)

 ≥3000MΩ  (normal)

1000 times

 PET+30%GF    UL94-V0

 Specification

Power contact
12#

Signal contact
20#

Quantity

10                                                    15

Rated current

35A                                                  5A

Contact resistance

1.6mΩ                                              6.7mΩ

Withstand voltage value

1500V                                              1000V

    Surface treatment

Silver plating on nickel base               Nickel plating

Terminating form

Welding,crimping,platebonding

 Materials

Insert pin,jack

Crown spring

Orichalcum

Berylium copper
