HomeProductsSZCNT01-E-19 Power Connector

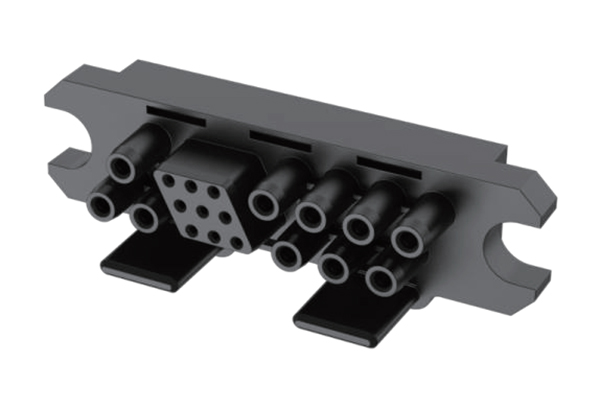

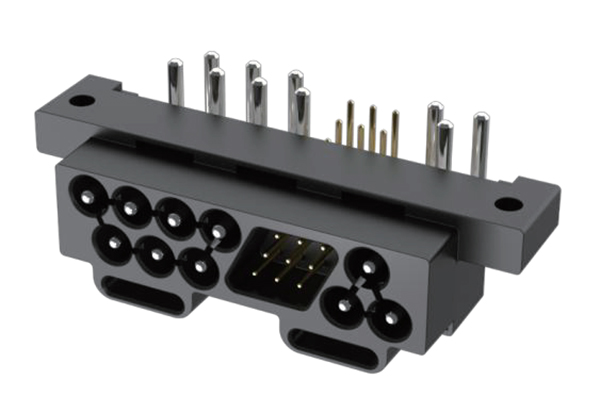

SZCNT01-E-19 Power Connector

P end: SZCNT01-E-19P
S end: SZCNT01-E-19S

Main technical parameters

Operatng temperature

-55℃~+125℃

Relative humidity

98%(40℃)

Insulation resistance

≥3000MΩ(normal)

Mechanical life

1000 times

Shell material

PET+30%GF     UL94-V0

Contact member

Specification

Power contact
 12#

Signal contact
20#

Quantity

 10

9

Rated current

  35A

5A

Contact resistance

  1.6mΩ

6.7mΩ

Withstand voltage value

  1500V

1000V

Surface treatment

  Silver plating on nickel base

Nickel plating

Terminating form

  Welding,crimping,plate bonding



Materials

Insert pin,jack

Orichalcum

Crown spring

  Beryllium copper

×
