SZCNT01-E-15 Power Connector

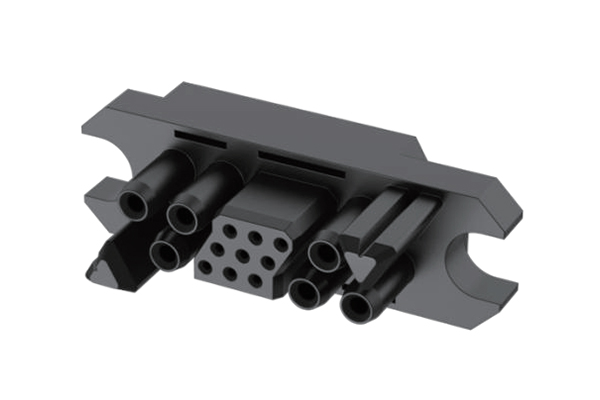

P end: SZCNT01-E-15P

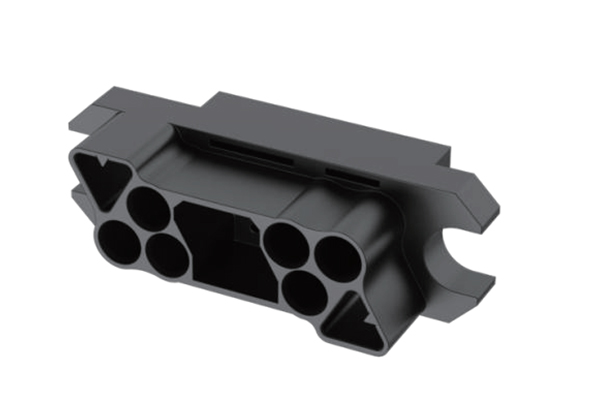

S end: SZCNT01-E-15S

Main technical parameters

Operatng temperdure

-55℃~+125℃

   Relative humidity

98%(40℃)

Insulation resistance

≥3000MΩ  (normal)

Mechanical life

1000 times

Shell material

PET+30%GF     UL94-V0

Contact member

specification

Power contact
   12#

Signal contact
20#

quantity

   6

6

Rated current

   35A

5A

Contact resistance

   1.6mΩ

6.7mΩ

Withstand voltagevalue

   1500V

1000V

Surface treatment

   Silver plating on nickel base

Nickel plating

Terminating form

   Welding,crimping,plate bonding

Materials

Insert pin,jack

   Orichalcum

Crown sping

   Beryllium copper


×
