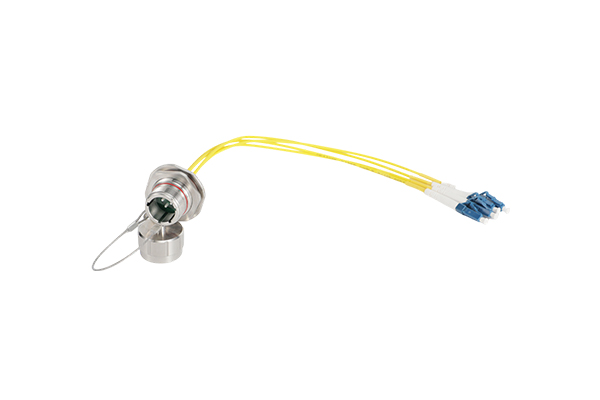

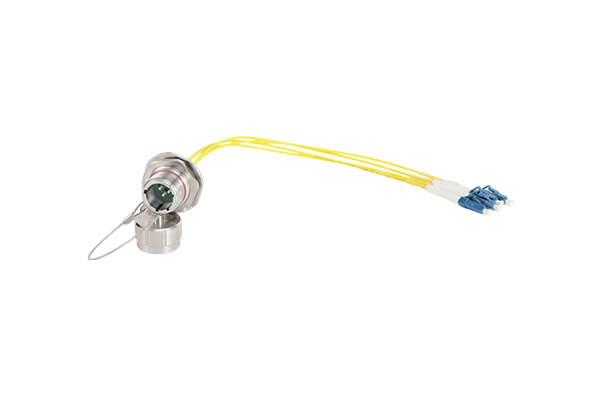

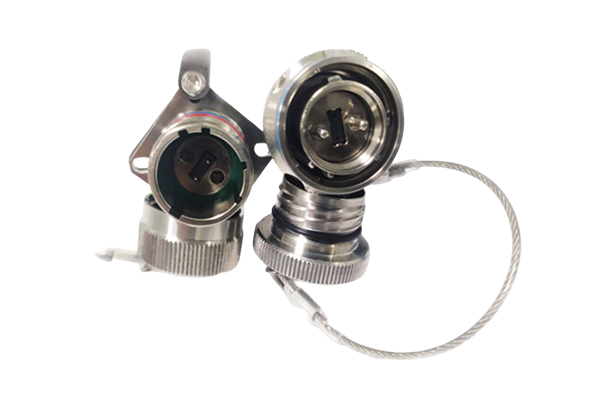

Project | Parameter | ||
Ferrule Type | MT Ferrule | ||
Shell core number | 12 core & multi core | ||
Fiber Type | Single-mode G652D (G657A optional) | Multimode OM1, OM2, OM3, OM4, OM5 optional | |
Working wavelength | Single mode: 1310, 1550nm | Multimode: 850, 1300nm | |
Insertion loss (dB) | 12C≤0.5dB | 12C≤0.5dB | |
Return loss (dB) | APC | ≥60 | / |
PC | ≥50 | ≥30 | |
Jumper Cable | Skin shape | Round Cable | |
Outer sheath material | LSZH, TPU (other materials can be customized) | ||
Outer diameter (mm) | 3.0, 5.0, 7.0, 12.0 optional | ||
Number of plug-in and plug-out times | >500 | ||
Tensile strength | 5.0&7.0 optical cable diameter ≥400N 12.0 optical cable diameter ≥500N | ||
Operating temperature | -40℃~+85℃ | ||
Waterproof grade | IP67 | ||
Comply with standards | GJB599A (MIL-DTL-38999) IIII series interface, GJB 1659A-2009 | ||
Project | Minimum | Maximum | ||
Curvature radius (mm) | Long axis (X ROC) | 2000mm | ... | |
Short axis (Y ROC) | 50mm | ... | ||
Angle | Long axis (X) | -0.20 | 0.20 | |
Minor axis (Y) | APC | 7.8 | 8.2 | |
PC | -0.20 | 0.20 | ||
Fiber height (nm) | 1000nm | 3000nm | ||
Maximum fiber height difference (nm) | NA | 400nm | ||
Height difference between adjacent optical fibers (nm) | NA | 200nm | ||
Fiber sag (multimode) (nm) | NA | 200nm | ||
Fiber Type | Single Mode | Multimode |
Color | Black | Orange color |
