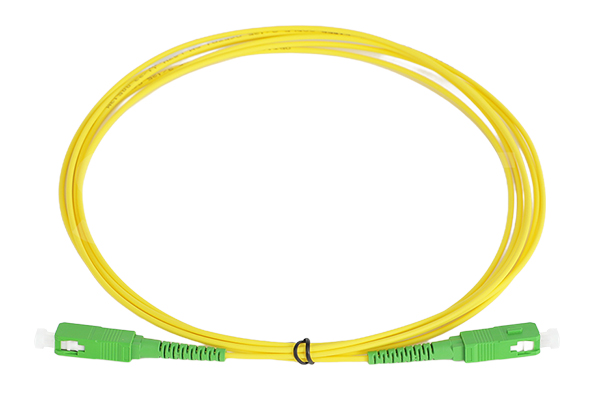

Conventional Fiber Optic Patch Cord SCAPC

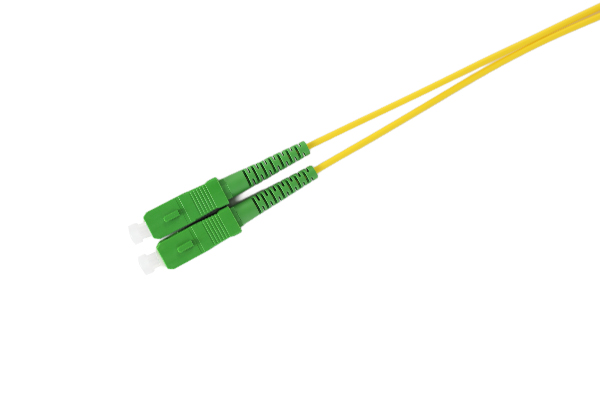

Conventional Fiber Optic Patch Cord SCAPC

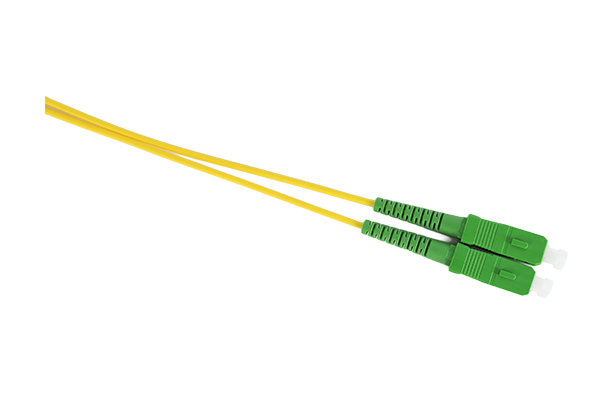

SCAPC
SC fiber optic connector is a widely used fiber optic interface device. Its name comes from "Square Connector" and was developed by Japan's NTT Corporation. SC connectors are used in a variety of fiber optic communication systems due to their compact design, durability, and easy plug-in and unplug features. They usually use 2.5mm ceramic pins with PC (physical contact) or APC (angled physical contact) type end faces to achieve low-loss fiber optic connections. SC connectors support a variety of fiber types, including single-mode and multi-mode fibers, and are very suitable for high-density network cabling environments, and can meet communication requirements of different speeds and distances.

Consult

Features
Technical Indicators
Overall Dimension


Product parameters (Table 1)
Project
Parameter
Number of fiber cores
1 core&multi-core
Fiber type
Single mode G652D(G657A optional)
Multi-mode OM1/0M2/OM3/0M4/0M5
optional
Working wavelength
1310、1550nm
850、1300nm
Insertion loss(dB)
≤0.30
≤0.25
Return loss(dB)
APC
≥60
/
PC
≥50
≥30
Jumpercable
Crust shape
round cable
Outer sheath
material
PCV(LSZH optional)
Outer diameter
(mm)
0.9、2.0、3.0
Number of plugs and unplugs
>1000
Tensile strength
0.9 optical cable diameter>7N 2.0&3.0 optical cable diameter>70N

Working temperature
-40℃~+85℃
Meet standards
IEC61753-1、IEC61755-3-1、IEC61755-3-2、YD/T 1272.4、GR-326-CORE
3D end face parameters (Table 2)
Project
Parameter
Ferruleend face
PC
APC
Radius of curvature(mm)
10~25
5~12
Vertex offset (um)
0~50
0~50
Fiber height(nm)
±100
±100
Angle
/
8±0.3°
Optical cable sheath color
Fiber type
Single mode
Multimode (OM1/0M2)

10 Gigabit Multimode
(OM3)

10 Gigabit Multimode
(OM4)

10Gigabit Multimode
(OM5)
Color
yellow
orange color
light blue
rose red
lime green

Project		Parameter
Number of fiber cores		1 core&multi-core
Fiber type		Single mode G652D(G657A optional)	Multi-mode OM1/0M2/OM3/0M4/0M5 optional
Working wavelength		1310、1550nm	850、1300nm
Insertion loss(dB)		≤0.30	≤0.25
Return loss(dB)	APC	≥60	/
	PC	≥50	≥30
Jumpercable	Crust shape	round cable
	Outer sheath material	PCV(LSZH optional)
	Outer diameter (mm)	0.9、2.0、3.0
Number of plugs and unplugs		>1000
Tensile strength		0.9 optical cable diameter>7N 2.0&3.0 optical cable diameter>70N
Working temperature		-40℃~+85℃
Meet standards		IEC61753-1、IEC61755-3-1、IEC61755-3-2、YD/T 1272.4、GR-326-CORE

Project	Parameter
Ferruleend face	PC	APC
Radius of curvature(mm)	10~25	5~12
Vertex offset (um)	0~50	0~50
Fiber height(nm)	±100	±100
Angle	/	8±0.3°

Fiber type	Single mode	Multimode (OM1/0M2)	10 Gigabit Multimode (OM3)	10 Gigabit Multimode (OM4)	10Gigabit Multimode (OM5)
Color	yellow	orange color	light blue	rose red	lime green
