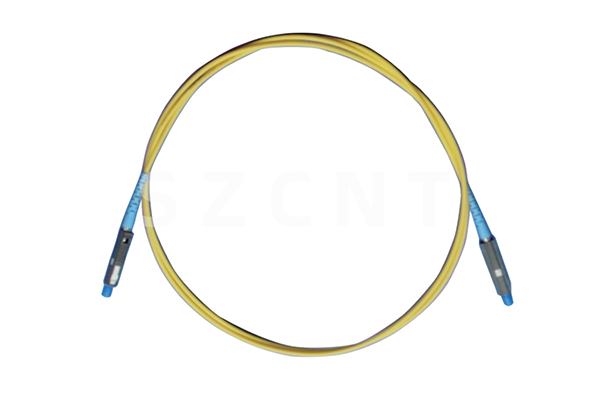

MU Fiber Patch Cord
The MU fiber optic connector is a product designed for high-density fiber optic networks. It has a place in the field of fiber optic communications with its miniaturized size and high performance. The MU connector supports high-density fiber wiring and is suitable for wiring needs in limited spaces. It is commonly found in data centers, switches, and high-density network equipment. The design concept of the MU connector is to provide a low insertion loss, high return loss solution while maintaining easy installation and maintenance. In addition, the design of the MU connector complies with international standards, ensuring good compatibility and interchangeability.

Consult

Features
Technical Indicators
Overall Dimension


Product parameters (Table 1)
Project
Parameter
Number of fiber cores
1 core&multi-core
Fiber type
Single mode G652D(G657A optional)
Multi-mode OM1/0M2/OM3/0M4/0M5
optional
Working wavelength
1310、1550nm
850、1300nm
Insertion loss(dB)
≤0.30
≤0.25
Return loss(dB)
APC
≥60
/
PC
≥50
≥30
Jumpercable
Crust shape
round cable
Outer sheath
material
PCV(LSZH optional)
Outer diameter
(mm)
0.9、2.0、3.0
Number of plugs and unplugs
>1000
Tensile strength
0.9 optical cable diameter>7N 2.0&3.0 optical cable diameter>70N

Working temperature
-40℃~+85℃
Meet standards
IEC61753-1、IEC61755-3-1、IEC61755-3-2、YD/T 1272.4、GR-326-CORE
3D end face parameters (Table 2)
Project
Parameter
Ferruleend face
PC
APC
Radius of curvature(mm)
10~25
5~12
Vertex offset (um)
0~50
0~50
Fiber height(nm)
±100
±100
Angle
/
8±0.3°
Optical cable sheath color
Fiber type
Single mode
Multimode (OM1/0M2)

10 Gigabit Multimode
(OM3)

10 Gigabit Multimode
(OM4)

10Gigabit Multimode
(OM5)

Color
yellow
orange color
light blue
rose red
lime green

Project		Parameter
Number of fiber cores		1 core&multi-core
Fiber type		Single mode G652D(G657A optional)	Multi-mode OM1/0M2/OM3/0M4/0M5 optional
Working wavelength		1310、1550nm	850、1300nm
Insertion loss(dB)		≤0.30	≤0.25
Return loss(dB)	APC	≥60	/
	PC	≥50	≥30
Jumpercable	Crust shape	round cable
	Outer sheath material	PCV(LSZH optional)
	Outer diameter (mm)	0.9、2.0、3.0
Number of plugs and unplugs		>1000
Tensile strength		0.9 optical cable diameter>7N 2.0&3.0 optical cable diameter>70N
Working temperature		-40℃~+85℃
Meet standards		IEC61753-1、IEC61755-3-1、IEC61755-3-2、YD/T 1272.4、GR-326-CORE

Project	Parameter
Ferruleend face	PC	APC
Radius of curvature(mm)	10~25	5~12
Vertex offset (um)	0~50	0~50
Fiber height(nm)	±100	±100
Angle	/	8±0.3°
