Conventional Fiber Optic Patch Cord LCPC uniboot

Conventional Fiber Optic Patch Cord LCPC uniboot

LCPC uniboot

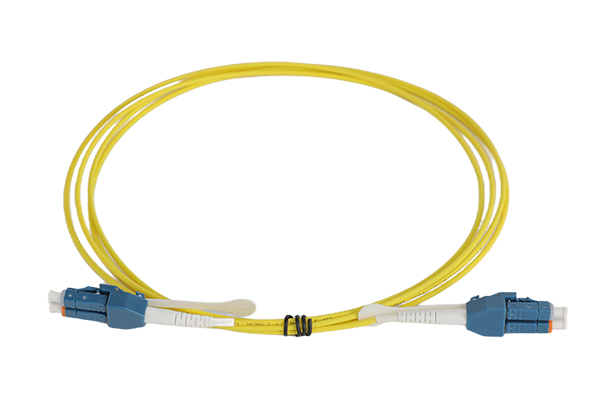

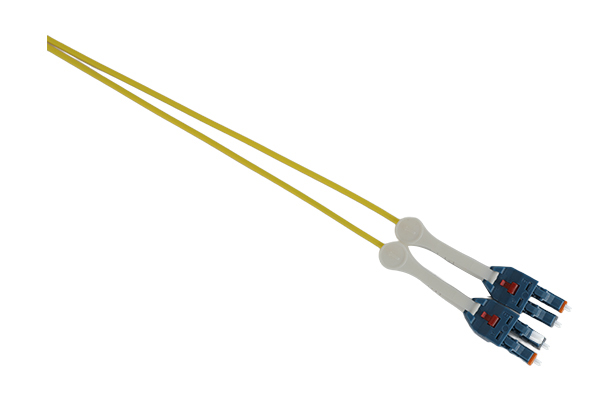

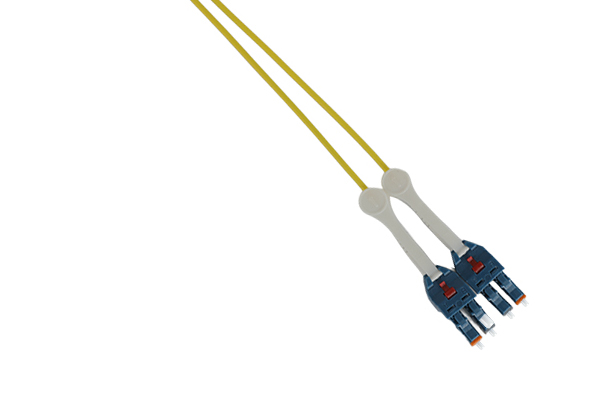

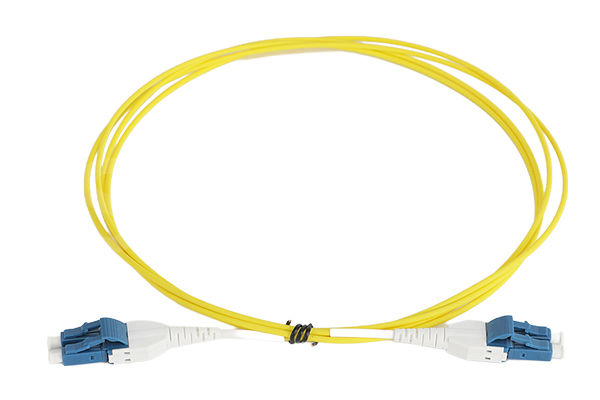

LC Uniboot fiber optic connector is a compact connector designed for high-density fiber optic network environment. It is specially designed to meet the needs of high-density fiber optic network. Uniboot connector, with its unique tail shape, can achieve more compact space occupation and higher port density, which is very beneficial for saving data center and network equipment rack space. In addition, Uniboot connectors generally have good optical performance and mechanical stability, support fast plugging and unplugging, and are suitable for application scenarios that require frequent connection and disconnection.

Consult

Features
Technical Indicators
Overall Dimension


Product parameters (Table 1)
Project
Parameter
Number of fiber cores
2 core &multi-core
Fiber type
Single mode G652D(G657A optional)
Multi-mode OM1/0M2/OM3/0M4/0M5
optional
Working wavelength
1310、1550nm
850、1300nm
Insertion loss(dB)
≤0.30
≤0.25
Return loss(dB)
APC
≥60
/
PC
≥50
≥30
Jumpercable
Crust shape
round cable
Outer sheath
material
PCV(LSZH optional)
Outer diameter
(mm)
0.9、2.0、3.0
Number of plugs and unplugs
>1000
Tensile strength
0.9 optical cable diameter>7N 2.0&3.0 optical cable diameter>70N

Working temperature
-40℃~+85℃
Meet standards
IEC61753-1、IEC61755-3-1、IEC61755-3-2、YD/T 1272.4、GR-326-CORE
3D end face parameters (Table 2)
Project
Parameter
Ferruleend face
PC
APC
Radius of curvature(mm)
10~25
5~12
Vertex offset (um)
0~50
0~50
Fiber height(nm)
±100
±100
Angle
/
8±0.3°
Optical cable sheath color
Fiber type
Single mode
Multimode (OM1/0M2)

10 Gigabit Multimode
(OM3)

10 Gigabit Multimode
(OM4)

10Gigabit Multimode
(OM5)
Color
yellow
orange color
light blue
rose red
lime green

Project		Parameter
Number of fiber cores		2 core &multi-core
Fiber type		Single mode G652D(G657A optional)	Multi-mode OM1/0M2/OM3/0M4/0M5 optional
Working wavelength		1310、1550nm	850、1300nm
Insertion loss(dB)		≤0.30	≤0.25
Return loss(dB)	APC	≥60	/
	PC	≥50	≥30
Jumpercable	Crust shape	round cable
	Outer sheath material	PCV(LSZH optional)
	Outer diameter (mm)	0.9、2.0、3.0
Number of plugs and unplugs		>1000
Tensile strength		0.9 optical cable diameter>7N 2.0&3.0 optical cable diameter>70N
Working temperature		-40℃~+85℃
Meet standards		IEC61753-1、IEC61755-3-1、IEC61755-3-2、YD/T 1272.4、GR-326-CORE

Project	Parameter
Ferruleend face	PC	APC
Radius of curvature(mm)	10~25	5~12
Vertex offset (um)	0~50	0~50
Fiber height(nm)	±100	±100
Angle	/	8±0.3°

Fiber type	Single mode	Multimode (OM1/0M2)	10 Gigabit Multimode (OM3)	10 Gigabit Multimode (OM4)	10Gigabit Multimode (OM5)
Color	yellow	orange color	light blue	rose red	lime green
